Available profiles

T (2,5 – 5 – 10 – 20)
AT (3 – 5 – 10 – 20)
SAT (10)
TK5-K6; TK10-K6; TK10-K13 (SELF CENTERING)
ATK5-K6; ATK10-K6; ATK10-K13 (SELF CENTERING)
MXL – XL – L – H – XH
HTD (3 – 5 – 8 – 14)
RTD (5 – 8 – 14)
STD (5 – 8 – 14)
GTR (14)
EAGLE (5 – 8 – 10 – 14)
FLAT (1 – 2 – 2,5 – 3 – 9)
POLY-V K
T10 – AT10 – HTD8 – Total Protection
TT5

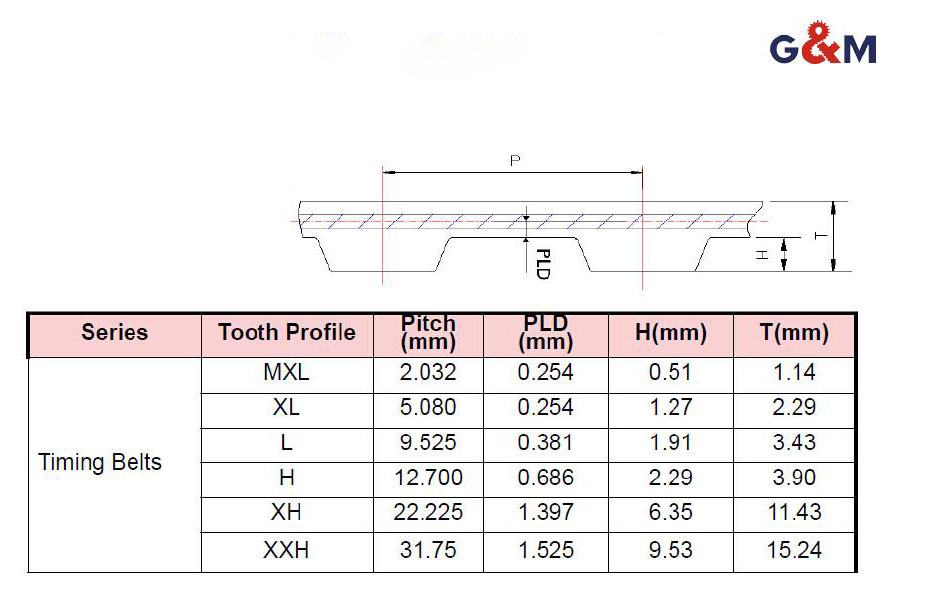

Timing Belts Trapezoidal Type

These timing belts conform to ISO and JIS standards. These products have a wide variety of tooth profiles and size variations, which makes them versatile and readily available

Belt structure

1) Body made of thermoplastic polyurethane 92 ° Sh.A with high wear resistance.
2) Tension cords made of steel with high tensile strength and high elastic modulus.
3) Fabric on teeth PAZ, PAR on the back or PAZ-PAR (on back and toothing), on request, used in order to: reduce the coefficient of friction, improve the tooth engagement, reduce the noise.
